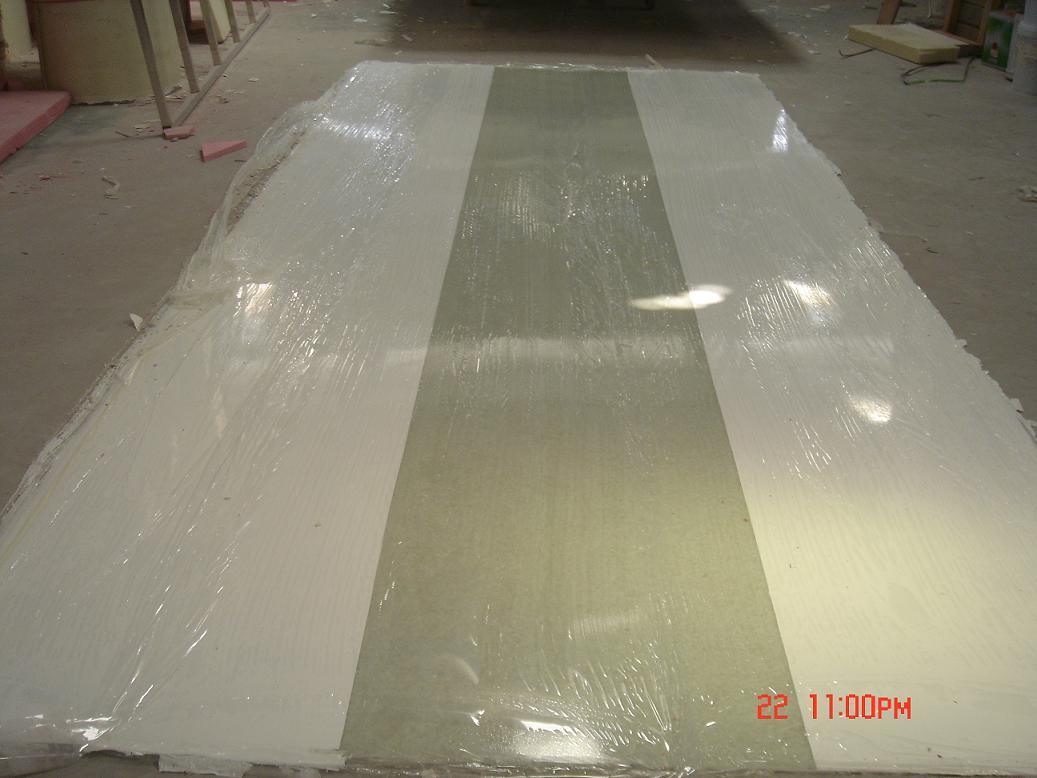

FRP Sheet
PROPERTIES
The exceptional quality of our FRP sheet is guaranteed by the use
of high grade raw materials and by the gelcoat obtained from high
elastic isophthalic resins that are resistant to yellowing and
impermeability to water vapor and condensation.
FRP sheet provides complete panel protection from humidity to the
panel's sensitive elements, be they expanded insulations or wood
stratifications. Insulation features are unaltered.
Typical general feature
1. Light-weight &high-intensity
2. Fire resistant optional
3. anti-impact &scratch 4. Corrosion resistant
5. easy to clean & install 6. Anti-mildew, mould, moisture
7. Resilient to weathering and hail 8. Excellent thermal
characteristics
| FRP Sheet | |||
| No | Item | Data | |
| 1 | Tensile Strength Mpa≥ | 100 | |
| 2 | Tensile Modulus Mpa≥ | 6.5*10³ | |
| 3 | Bending strength Mpa≥ | 160 | |
| 4 | Tensile Modulus Mpa≥ | 4.5*10³ | |
| 5 | Barcol Hardness≥ | 40 | |
| No | Panel's thickness(mm) | weight(kg/m2) | |
| 1 | 1.5 | 2.5 | |
| 2 | 2.5 | 4.5 | |
| 3 | 3 | 5 | |
|
|
