Your First Choice for High-Quality & Efficient Refrigerated and Dry Vehicles
2 Years
| Ask Lasest Price | |
| Brand Name : | SNOWFALL |
| Model Number : | SF-700 |
| Certification : | CE, ISO |
| Supply Ability : | 100 sets/Month |
| Delivery Time : | 5 days |
Introduce:
It is suitable for refrigerating vehicles of light trucks and above, with remarkable refrigeration effect under the volume of 14-23m.
It is the first choice for transporting refrigerated frozen food, dairy products, fruits, ice cream, fresh agricultural products and industrial electronic products, with very stable and reliable refrigeration performance.

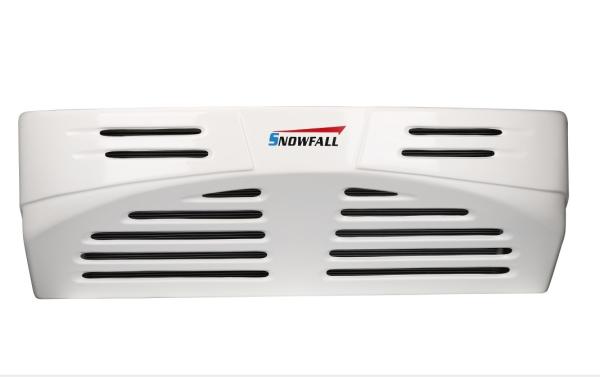

The engine-driven transport refrigerating unit SF-700 sub-unit is a reliable refrigerating unit for light truck thermal insulation vehicles with a size of 14~ 23m.
Feature:
The whole transport refrigerating unit is light and compact, the condenser is in front, the 12-inch large aluminum alloy vane motor imported from Taiwan, the evaporator can be installed as required.
3. This series of models fully covers the freezing capacity ranging from 14 m to 56m and accurately matches its freezing volume from per square meter.
4. Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.
Model | SF - 700 | |||
Applicable Temperature (℃) | 15 ~ -20 | |||
Cooling Capacity | Environmental Temperature | 35°C | ||
0°C | 5800Kcal | |||
-18°C | 3250Kcal | |||
Compressor | Model | QP16/QP21 | ||
Displacement(cc/r) | 215cc | |||
Condenser | Type | P.F. | ||
Fan Type | Axial fan | |||
Number of Fan | 3Fans x 1000m3/h | |||
Voltage | DC 12V/DC24V | |||
Evaporator | Type | Inner screw tube and aluminium fin | ||
Fan Type | Axial fan | |||
Number of Fan | 3Fans x1000m3/h | |||
Voltage | DC 12V/DC24V | |||
Power Consumption | ≤ 37.5A (DC12V) | |||
Refrigerant | R-134a/R-404a | |||
Defrost Type | Automatically hot air defrost | |||
Structure | Split direct drive unit | |||
Dimensions (mm) /Net weight(kg) | SF-700 Evaporator | L570x W1240x H240 | 31.4 kg | |
SF-700 Condenser | L570 x W1260 x H435 | 54.3kg | ||
Electric Standby system(optional part) | AC 220V /AC 380V | |||
|
|
