45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology

SF-700

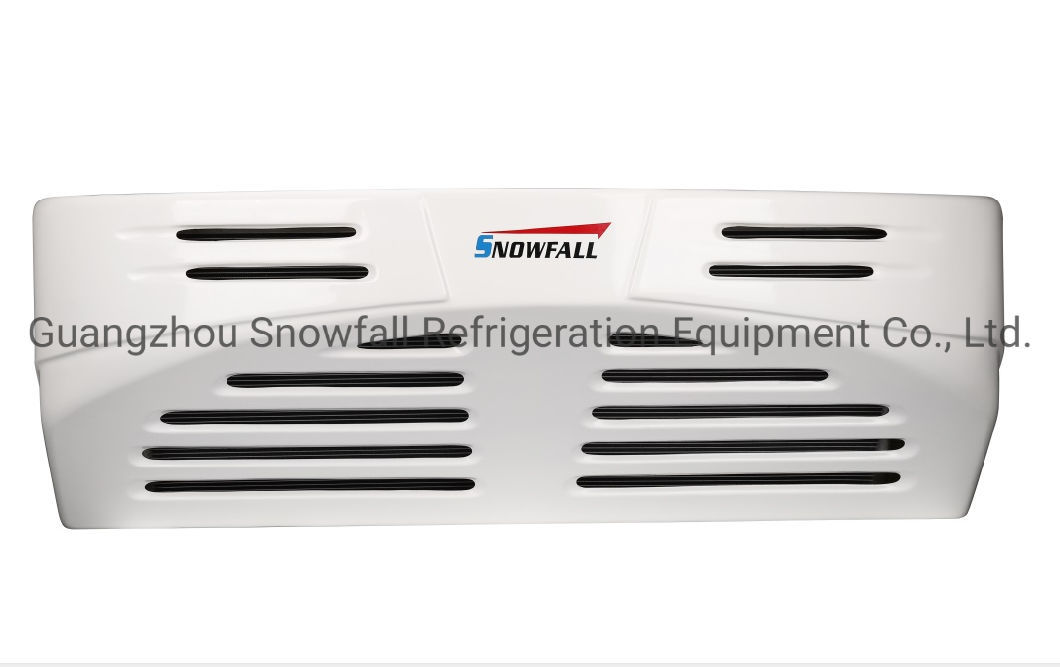

Freezer Unit for Big Truck Cooler Unit
Freezer Unit for Big Truck Cooler Unit
Freezer Unit for Big Truck Cooler Unit
Freezer Unit for Big Truck Cooler Unit
Freezer Unit for Big Truck Cooler Unit


Introduce:

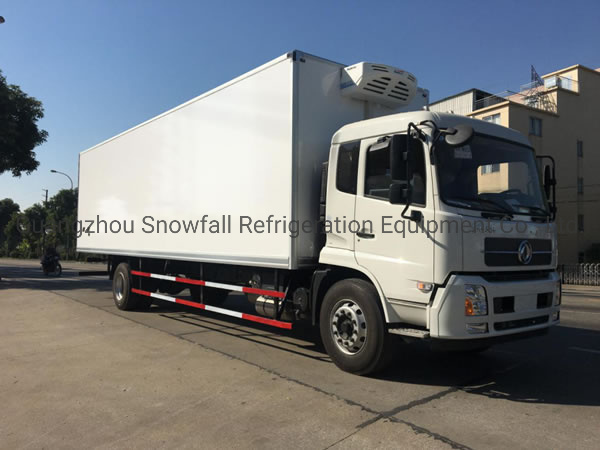

It is suitable for refrigerating vehicles of light trucks and above, with remarkable refrigeration effect under the volume of 14-23m.

It is the first choice for transporting refrigerated frozen food, dairy products, fruits, ice cream, fresh agricultural products and industrial electronic products, with very stable and reliable refrigeration performance.
The engine-driven transport refrigerating unit SF-700 sub-unit is a reliable refrigerating unit for light truck thermal insulation vehicles with a size of 14~ 23m.

Feature:
  1. Optional DC 12V or 24V for you to choose, and backup electric refrigeration system DC220V/DC380V optional installation
  2. The whole transport refrigerating unit is light and compact, the condenser is in front, the 12-inch large aluminum alloy vane motor imported from Taiwan, the evaporator can be installed as required.
3. This series of models fully covers the freezing capacity ranging from 14 m to 56m and accurately matches its freezing volume from per square meter.
4. Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.
ModelSF - 700
Applicable Temperature (ºC)15 ~ -20
Cooling CapacityEnvironmental Temperature35°C
0°C5800Kcal
-18°C3250Kcal
CompressorModelQP16/QP21
Displacement(cc/r)215cc
CondenserTypeP.F.
Fan TypeAxial fan
Number of Fan3Fans x 1000m3/h
VoltageDC 12V/DC24V
EvaporatorTypeInner screw tube and aluminium fin
Fan TypeAxial fan
Number of Fan3Fans x1000m3/h
VoltageDC 12V/DC24V
Power Consumption 37.5A (DC12V)
22.5A (DC24V)
RefrigerantR-134a/R-404a
Defrost TypeAutomatically hot air defrost
StructureSplit direct drive unit
Dimensions (mm) /Net weight(kg)SF-700 EvaporatorL570x W1240x H24031.4 kg
SF-700 CondenserL570 x W1260 x H43554.3kg
Electric Standby system(optional part)AC 220V /AC 380V
