Your First Choice for High-Quality & Efficient Refrigerated and Dry Vehicles
2 Years
| Ask Lasest Price | |
| Supply Ability : | 200 sets per month |
| Brand Name : | SNOWFALL |
| Certification : | ISO , SGS, CE |
| Price : | Negotiation |
| Delivery Time : | 10 days |

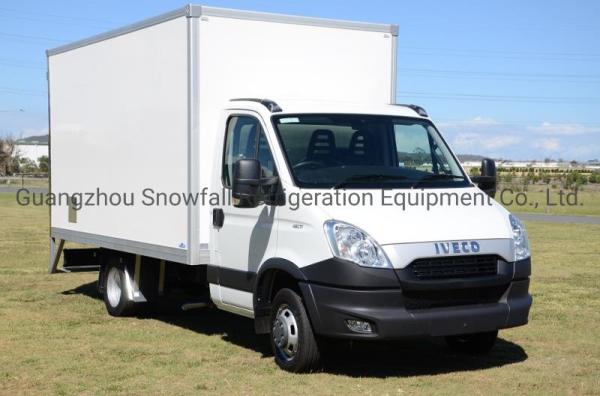

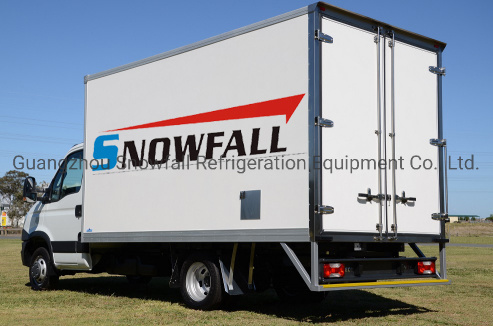

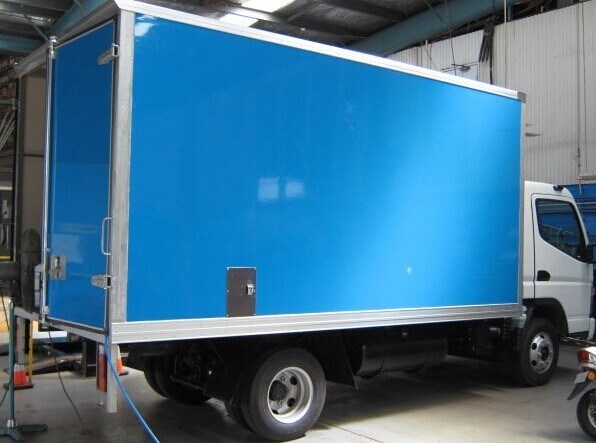

Dry cargo box
1)Panels formed at high pressure byvacuum technique of Germany
2)Surface is FRP sheet
3)easy and fast assembly
(1) Selection of Materials
PP honeycomb-cored panel for front panel, roof panel and side door panels,
Plywood sandwich panel for door.2mm steel checked plate for floor.
A Advantages of Materials:
(1)PP honeycomb-cored panel: light in weight, high strength, no
pollution.
(2)Plywood sandwich panel: no pollution.
(2) Construction of Box
A Assembly:
stability and consistency Panel assembly introduces international patented technology.
Each position is a complete piece of panel.
With high strength alumimun extrusions,panels are prefabricated
into kits such as front panel, roof panel, floor, 2 side panels,
and door.
The whole body is assembled together by the different panels kits
B Advantages of Construction:
easier and faster installation, better sealing and higher structural strength
Our products have been exported to many countries for years and enjoyed great reputation .<o:p>
Our oversea markets are as follows:North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe etc <o:p>
| Standard Size (T) | Snowfall Dry Cargo Box | ||
| L (mm) | 3160 | 4380 | 6250 |
| W (mm) | 1740 | 2000 | 2450 |
| H (mm) | 1650 | 1920 | 2300 |
| Panel Type | FRP + Honeycomb + FRP | ||
| Roof Panel | 1.5mm + 18mm + 1.5mm | ||
| Front Panel | 1.5mm + 18mm + 1.5mm | ||
| Wall Panel | 1.5mm + 18mm +1.5mm | ||
| Floor Panel | 3mm Steel Checked Plate | ||
| Rear Door | 1 pair of 20mm thick FRP plywood swing doors | ||
| *Customize size available 2m ~ 9m (Please specify the details) | |||
|
|
