Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable

Guangzhou Snowfall Refrigeration Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable from wholesalers

    Buy cheap Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable from wholesalers
    • Buy cheap Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable from wholesalers

    Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable

    Ask Lasest Price
    Supply Ability : 200 sets per month
    Brand Name : SNOWFALL
    Certification : ISO , SGS, CE
    Price : Negotiation
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable

    Ice cream truck body

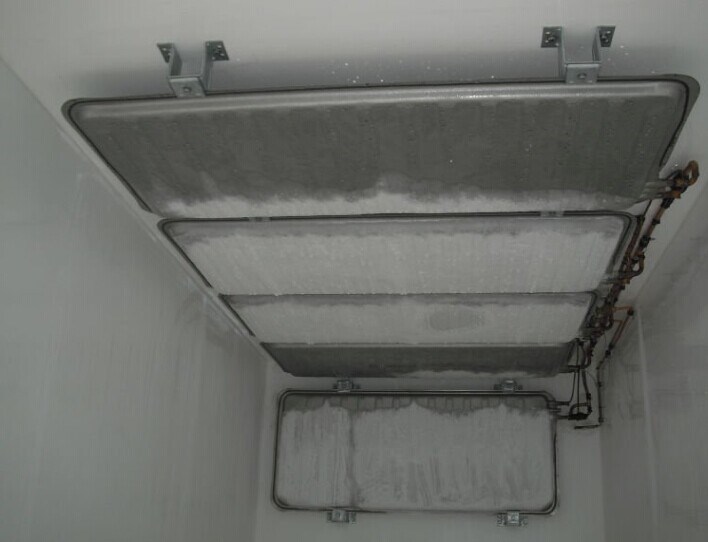

    It consists of panel, compressor, condenser, control box and eutectic (freezing) plate. This is a new concept refrigerator top which maintains cold for a long time by creating latent heat when dissolving the fluid slowly after freezing (solidification) the fluid accumulated on the freezing plate at certain temperature.


    - It has a freezing method in which we accumulate the cold on freezing plate by operating refrigerator at night and we can keep products cold during day time by using the cold accumulated.


    It can improve the performance of the vehicle because power source is 380V (220V) which is regardless of engine of the vehicle.

    It gives pleasant transportation condition (no noise and no vibration).

    - It allows early cooling operation as you can keep frozen products in the vehicle and it allows increasing product selling time.

    It is suitable for cryogenic refrigeration as it uses whole forming type urethane panel [100mm] and fastener type panel.

    - There are less mechanical problems because it operates with no relation with vehicle engine as Eutectic cold plate system is completely disconnected with the vehicle.

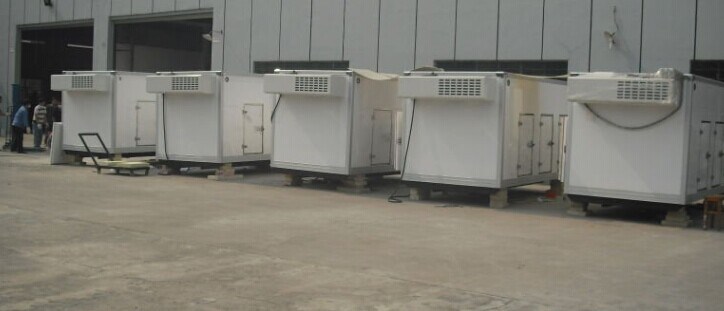

    Refrigerated Truck Body (FRP Sandwich Panel) for Ice Cream Transportation
    Refrigerated Truck Body (FRP Sandwich Panel) for Ice Cream TransportationRefrigerated Truck Body (FRP Sandwich Panel) for Ice Cream Transportation
    VehicleTruck body sizeCondensing unitElectricCompressorEutectic plate(stainless steel)Freeze capacity(kcal)Refrigeration gas
    Size(mm):W560*L1250*T50
    L*W*H(mm)Front mountSize(mm):W560*L1550*T50(eutectic plate with solution at -33 °C )
    1.0t3160*1740*16503 HP3pole 380vCopeland scroll type5 pcs1890kcal*5pcs=9450kcalR404A 3.0kg charge
    50hz:2.2w
    2.5t4380*2000*19205 HP3pole 380v8 pcs1890kcal*8pcs=15120kcalR404A 4.5kg charge
    50hz:2.2w
    3.5t4800*2000*20005 HP3pole 380v9 pcs1890kcal*9pcs=17010kcalR404A 4.5kg charge
    50hz:2.2w
    5.0t6250*2450*23005 HP3pole 380v11 pcs1890kcal*11pcs=20790kcalR404A 4.5kg charge
    50hz:2.2w
    8.0t7500*2500*23005 HP3pole 380v13 pcs1890kcal*13pcs=24570kcalR404A 4.5kg charge
    50hz:2.2w
    11.0t9150*2500*22507.5 HP3pole 380v15 pcs1890kcal*15pcs=28350kcalR404A 6.0kg charge
